Designation |
CT-1880 |
CT-1885 |
CT-1890 |
CT-1895 |
CE-1885 |
|
Below test results were from our TPU film of thickness 1.0m/m |
|
Hardness ±2 |
80A |
85A |
90A |
95A |
85A |
300% Modulus
|
50 |
70 |
80 |
140 |
85 |
Tensile Strength
(Kg/cm2) |
230 |
320 |
340 |
400 |
330 |
Elongation(%)
|
800 |
600 |
550 |
500 |
600 |
Tear strength
|
75 |
90 |
100 |
125 |
90 |
Specific Gravity
(±0.02) |
1.2 |
1.2 |
1.2 |
1.22 |
1.12 |
|
Melt point ±5℃ |
70 |
100 |
110 |
130 |
100 |
UV Resistance 24hr
(grade) |
4 |
4 |
4 |
4 |
4 |
|
Hydiolysis Resistance |
Good |
Good |
Good |
Good |
Excellent |
|
H/F welding level |
Excellent
|
Excellent
|
Excellent
|
Good |
Excellent
|
|
|
※ properties listed for reference only, actual data to test the actual film as the standard. (Thickness specifications: 0.1 ~ 2.0mm)
※ Where necessary requirements other things, the company also with the development and mass production.
※ another film after processing series: electroless plating, change color film, laminating or processing of all kinds of lines, etc ...... |
 |
|
TPU products according to different production methods have their different methods and types of post-processing |
|
1、Blown class
- |
Typically bonded patch manner as
clothing, medical appliances or shoe
with a waterproof and |
| |
breathable. |
|
|
2、Extrusion class
- |
TPU film extrusion in terms of the use that is more and post-processing methods, such as |
|
◎ |
High Frequency - Pneumatic molding, eager to make the substrate Logo or decorations. |
|
◎
|
Printing、change color - Screen printing, heat transfer, water transfer, knife, roller, co-paste PU Skin. |
|
◎ |
Stickers reflective film |
|
◎ |
Stick together - Stick knitting / weaving, stick plating / Ray Zhimo. |
|
◎
|
Vacuum - As air bags, oil, computer keyboards, dust cover. |
|
◎ |
Embossed |
|
◎ |
Glue- LCD protective film, waterproof, electronic tape. |
|
◎ |
With injection- Injection, injection outsole use. |
|
|
3、Injection
class
- |
Generally speaking directly after
the injection can be used mostly
finished, and then after |
| |
processing For who posted are based on
re-painting and electroplating
based. |
|
|
|
|
 |
| |
|
1、 |

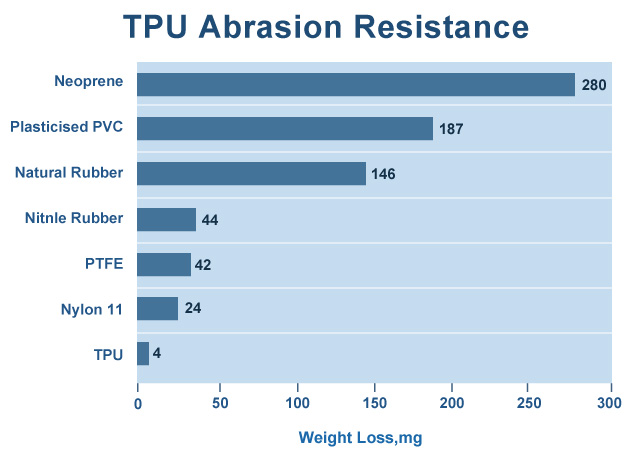

Abrasion & abrasion Hao is very good. |
|
2、 |
Tear good tensile strength. |
|
3、 |
Oil, Gasoline resistance is good. |
|
4、 |
Low-temperature characteristics of a good flexible, weather resistance, ozone resistance. |
|
5、 |
Ichiban Health Act in line with FDA regulations. |
|
6、 |
Wide range of hardness, elasticity softness cept, large shock-absorbing silencer. |
|
7、 |
Transparency, versatile, good workability. |
|
8、 |
It can meet the environmental requirements & recycling processing cost savings. |
|
9、 |
Easily mixed with other resins. |
|
10、 |
The solvent can dissolve after processing. |
|
 |
|
